Vacuum Box DELTA-VB300-A (with integrated pump) – Portable Autonomous NDT Leak Detection Tool

Vacuum Box DELTA-VB300-A (with integrated pump) – Portable Autonomous NDT Leak Detection Tool

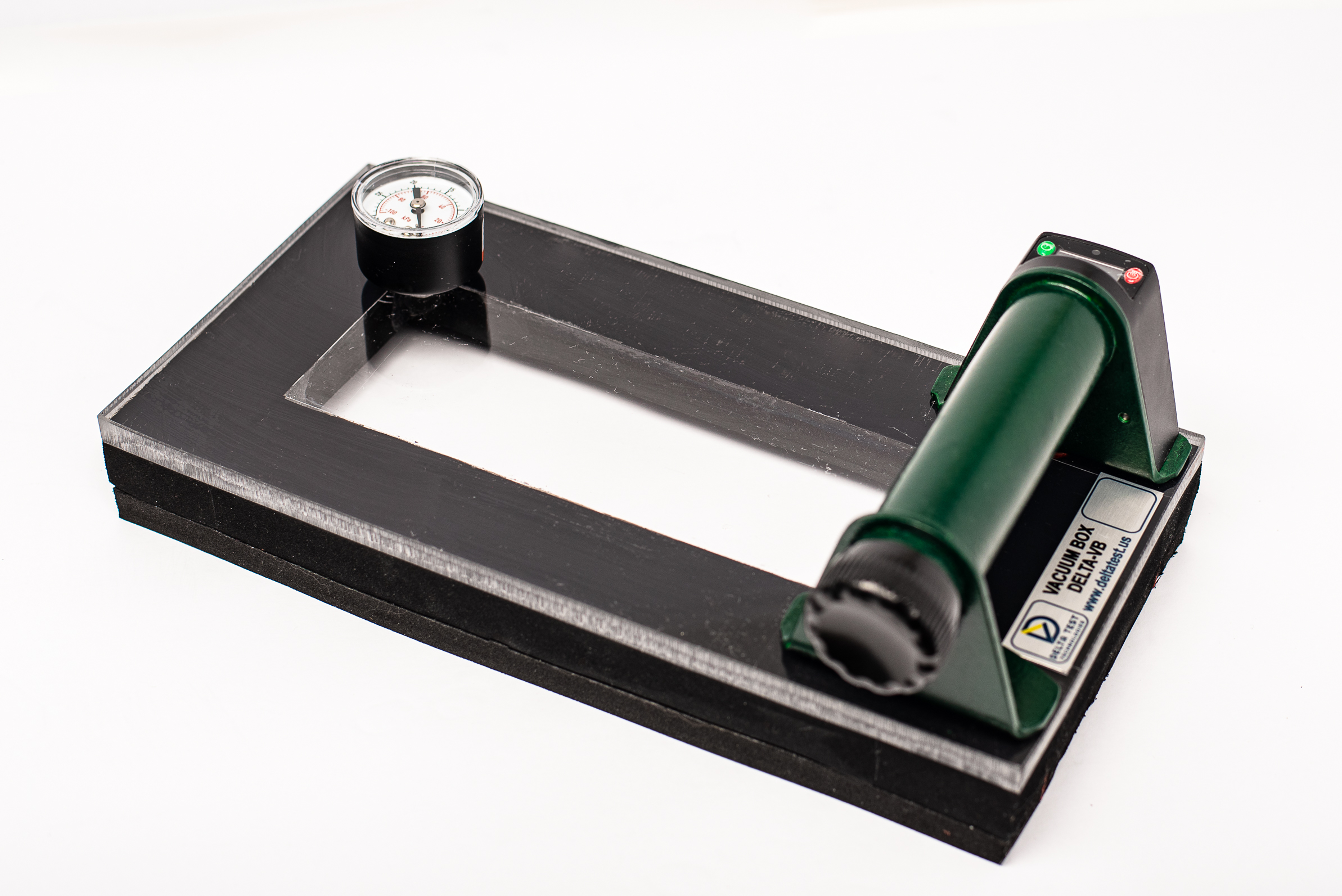

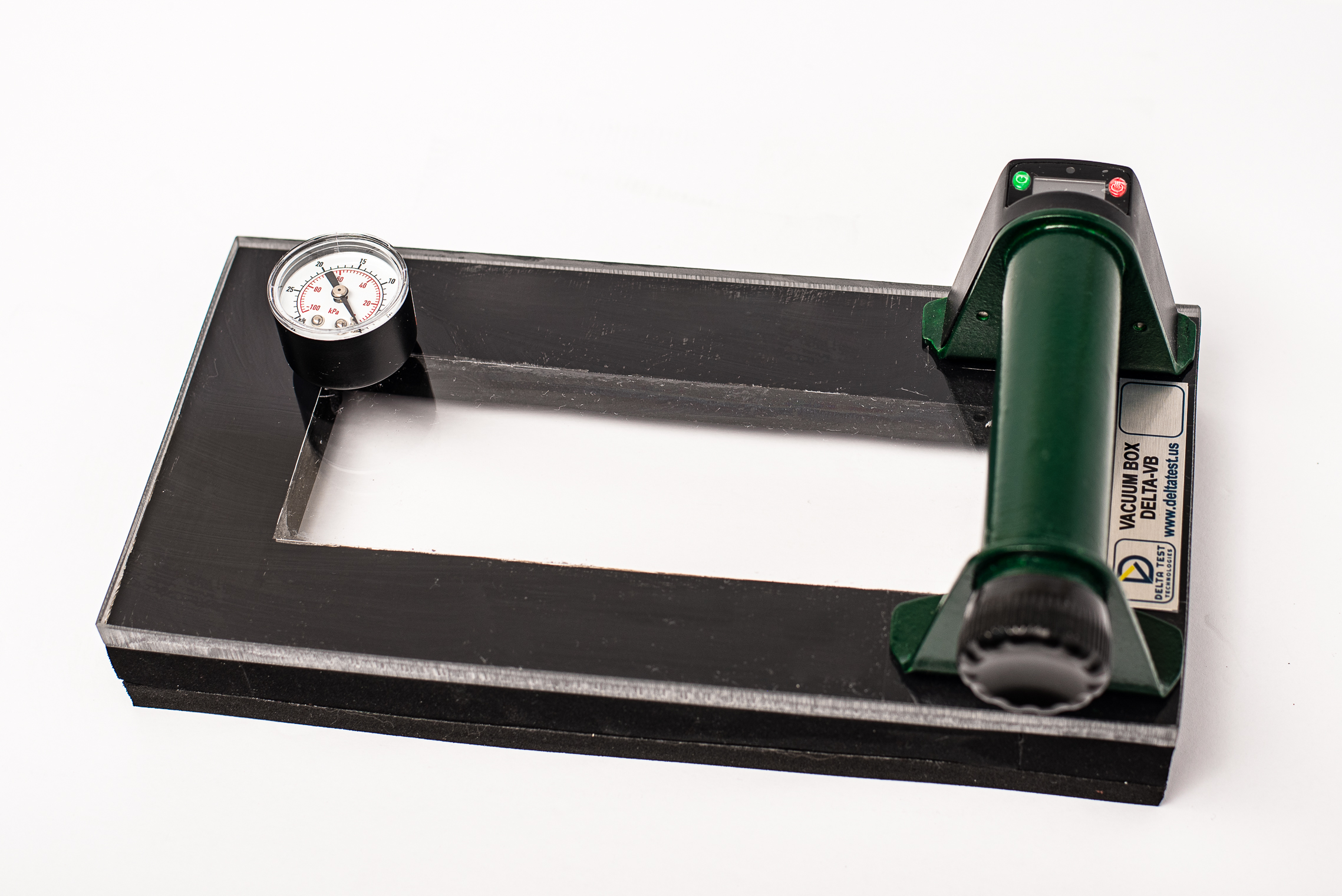

The DELTA VB300-A Vacuum Box is a compact, lightweight, and fully autonomous tool designed for non-destructive testing (NDT) of welded joints in sheet metal structures. Ideal for tank bottoms, protective shells, vessel elements, pipelines, and other products with one-sided seam access, it ensures precise leak detection in both field inspections and maintenance operations.

Using the bubble emission method, the DELTA VB-300-A detects through-thickness defects by creating a controlled vacuum in the attached chamber. Any leaks are visualized as gas bubbles in a foaming indicator solution applied to the welded seam, allowing accurate defect identification. This method complies with international standards, including ASTM E515-11 and DIN EN 1593, making it a reliable choice for professional NDT applications.

Key Features & Advantages:

• Autonomous and portable – no external vacuum pumps, hoses, filters, or AC power required.

• Battery-powered – operates on a 3.7V, 2200 mAh rechargeable battery, providing up to 4 hours of continuous operation.

• Lightweight & compact – vacuum box weighs just 1.3 kg; full kit weighs only 2.5 kg, easy to transport in the included case.

• Fast and efficient – completes vacuum cycles in seconds (30 s to reach -0.6 atm for a 0.013 mm² leak), up to 130 cycles per battery charge.

• Safe low-voltage operation – 3.7V power supply ensures maximum field safety.

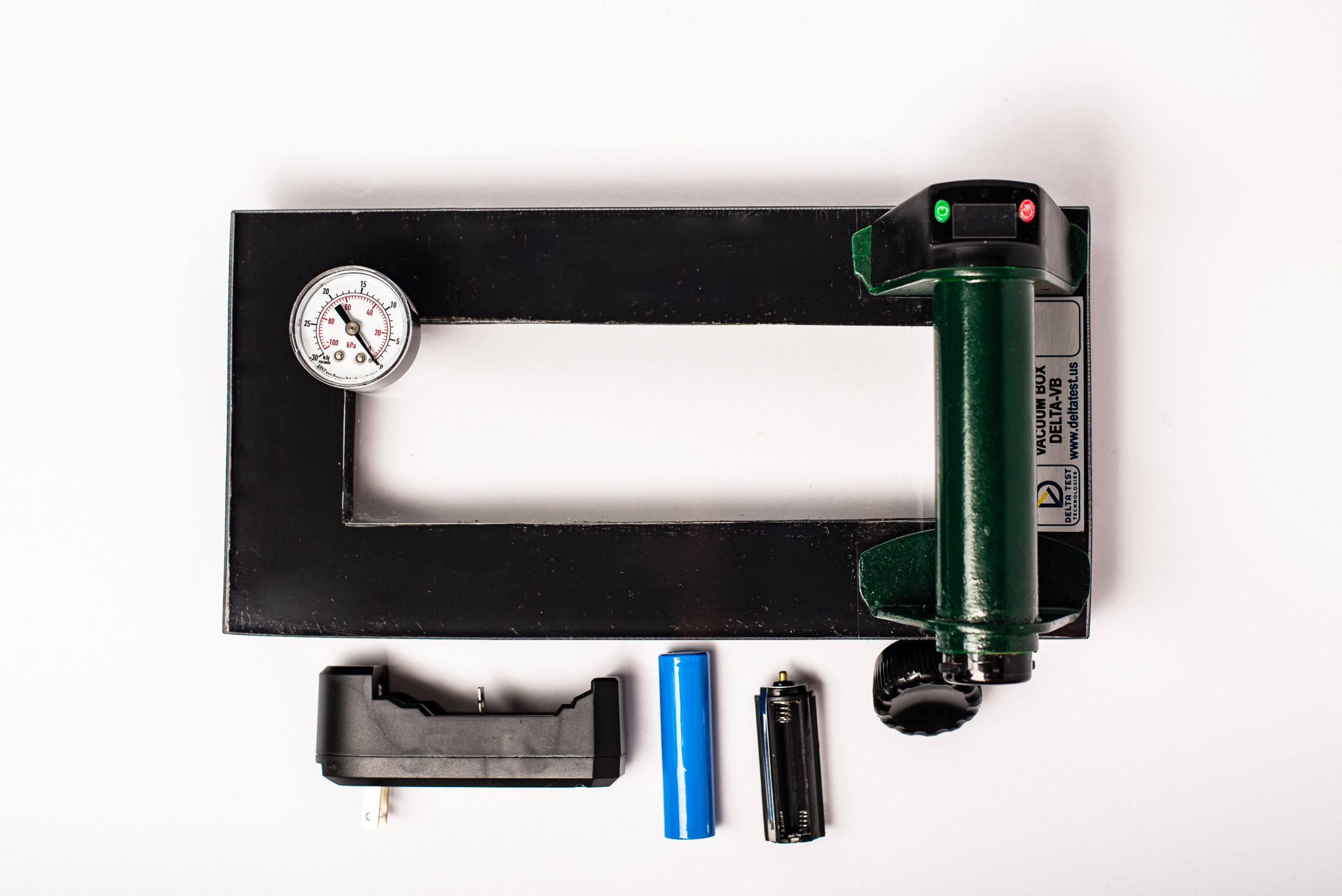

• Complete kit included – vacuum box, spare battery, charger, transport case, and product passport.

Technical Specifications:

• Dimensions (L×W×H): 300 × 150 × 100 mm

• Window size: ≥ 220 × 70 mm

• Battery type: 18650 Li-ion, 3.7V, 2200 mAh

• Charging time: ≤ 6 hours

• Maximum vacuum cycles per charge: 130

Why Choose the DELTA VB300-A:

This innovative vacuum box concept eliminates the need for external pumps, hoses, and electrical connections, offering unmatched mobility, safety, and ease of use. Its compact and lightweight design enables inspections in confined or remote locations, while the integrated battery-powered pump ensures fast, precise, and repeatable leak detection.

The DELTA VB300-A sets a new standard in portable NDT equipment, combining efficiency, safety, and compliance with international standards for reliable, high-precision inspection of welded joints and sheet metal structures.

Order the DELTA-VB300IP Today

Streamline your non-destructive testing (NDT) processes with the DELTA-VB300-A Vacuum Box.

Contact us now for more details or to request a quote!
We also offer a variety of technical diagnostic and non-destructive testing equipment to meet your needs.

Applications of the DELTA VB300-A

The DELTA VB300-A is a portable autonomous vacuum box for non-destructive testing of welded joints in sheet metal structures with one-sided seam access.

It is ideal for tank bottoms, protective shells, vessel elements, and pipelines during field inspections and maintenance operations, especially in confined or remote locations.

Because the DELTA VB300-A needs no external vacuum pumps, hoses, filters, or AC power, it suits sites where equipment mobility and low-voltage safety matter.

The DELTA VB300-A complies with ASTM E515-11 and DIN EN 1593, fitting professional NDT programs in storage, petrochemical, and fabrication industries.

DELTA VB300-A key features

• The DELTA VB300-A is fully autonomous: no external vacuum pumps, hoses, filters, or AC power are required.
• Battery-powered operation on a 3.7 V, 2200 mAh rechargeable 18650 Li-ion battery provides up to 4 hours of continuous operation.
• Fast vacuum cycles measured in seconds — 30 s to reach -0.6 atm for a 0.013 mm² leak — with up to 130 cycles per battery charge.
• Safe low-voltage 3.7 V power supply ensures maximum field safety for the DELTA VB300-A.
• Lightweight and compact: the vacuum box weighs just 1.3 kg and the full kit only 2.5 kg, transported in the included case.
• Dimensions of 300 × 150 × 100 mm with a viewing window of at least 220 × 70 mm; charging time of no more than 6 hours.
• Complete kit includes the vacuum box, spare battery, charger, transport case, and product passport.
