Corner Vacuum Box DELTA-VB300-2
Corner Vacuum Box DELTA-VB300-2

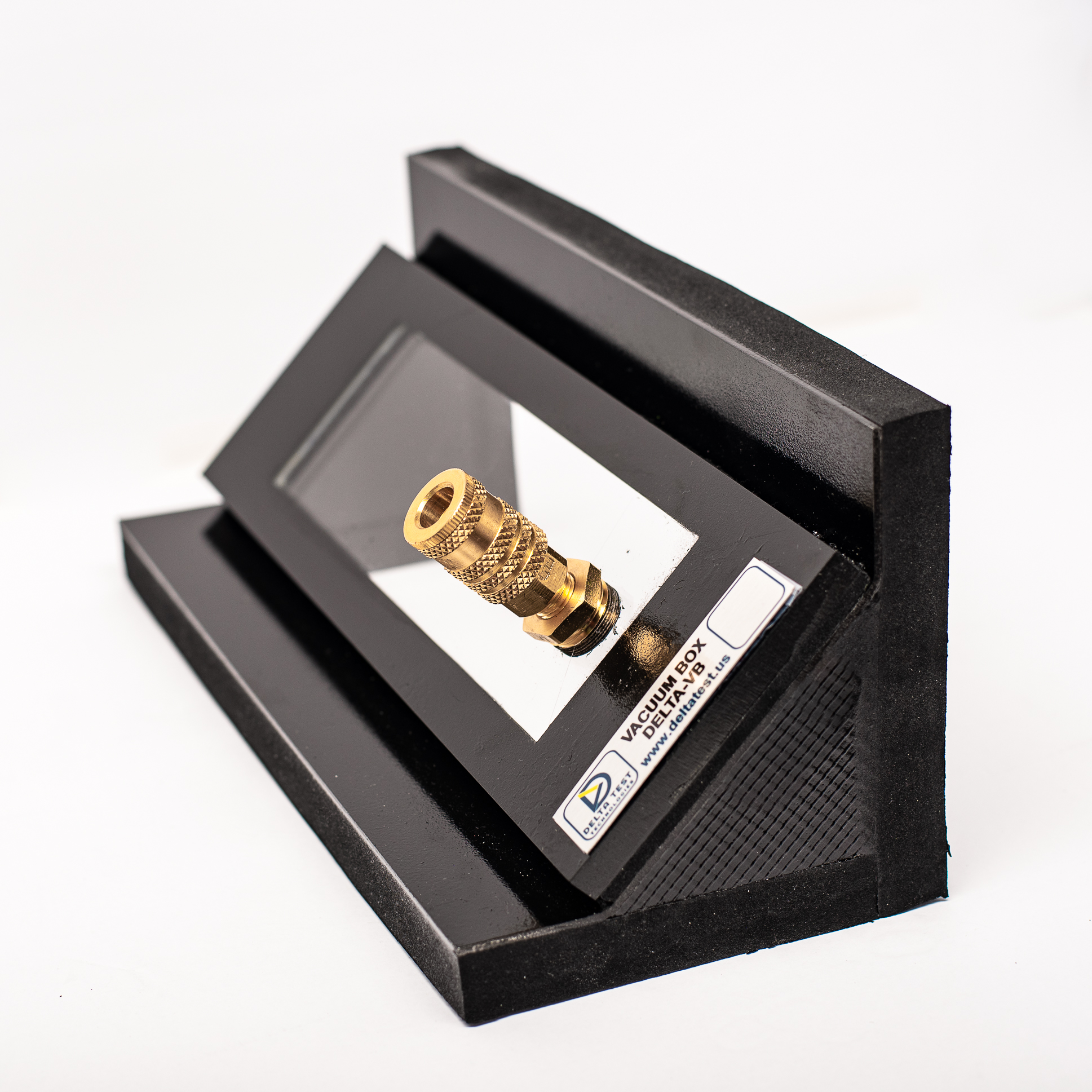

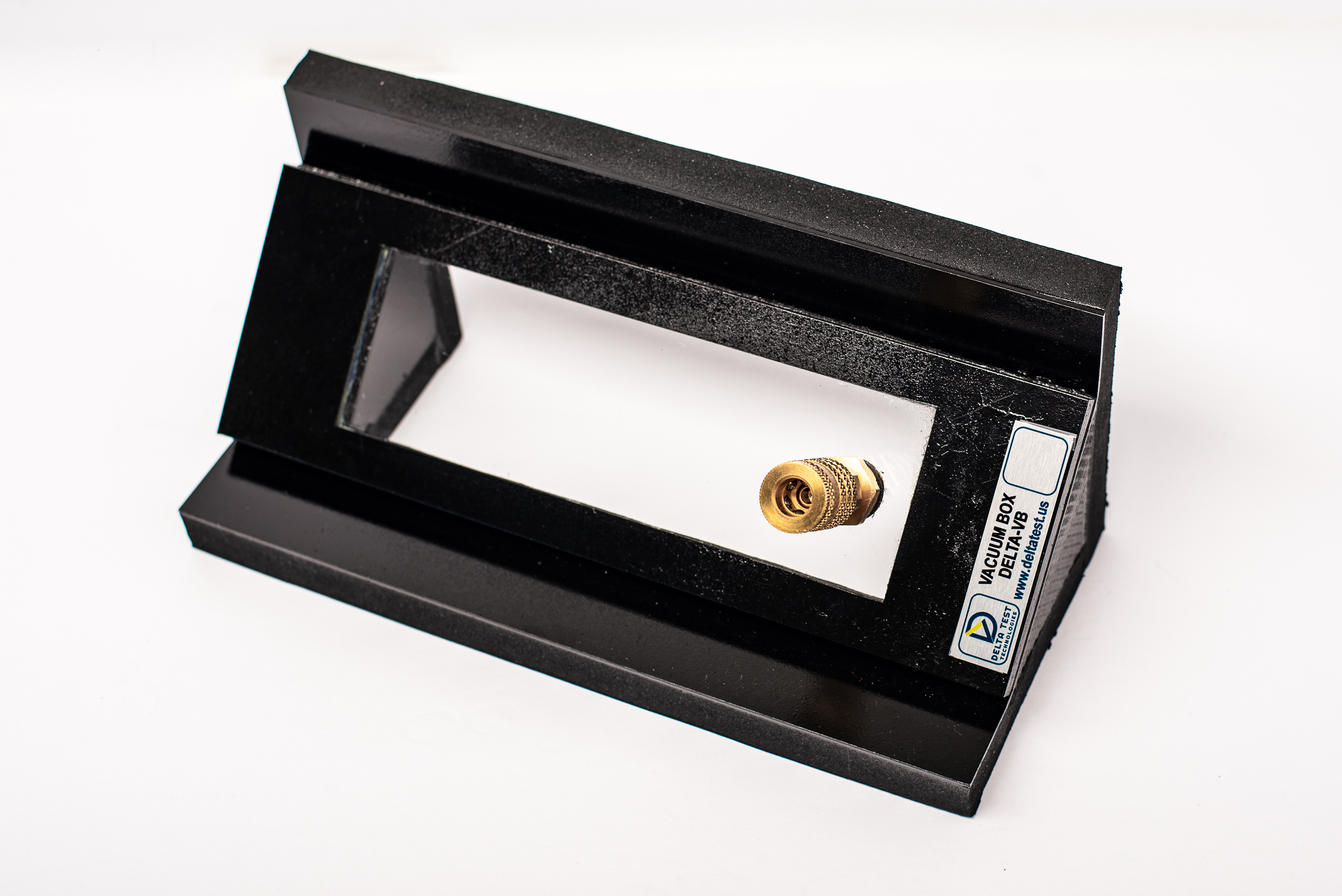

The Corner Vacuum Box DELTA-VB300-2 is a specialized tool designed for leak testing welded joints in sheet metal structures. Its corner-specific design makes it ideal for inspecting inside corners, such as where the bottom meets the sidewall at a 90-degree angle. Compact and precise, it’s perfect for testing tank bottoms, protective shells, vessel components, and other structures with one-sided seam access. As part of the DELTA-VB vacuum flaw detection system, it delivers accurate and reliable results for non-destructive testing (NDT).
The Corner Vacuum Box DELTA-VB300-2 is designed for use with an external vacuum pump. The vacuum pump is not included in the standard scope of delivery and can be ordered additionally.
Corner Vacuum Box DELTA-VB300-2 Key Features
Corner-Specific Design
- Tailored for inspecting inside corners and tight spaces.
- Ensures thorough coverage in challenging areas where three surfaces meet.
Compliance with International Standards
- Meets industry standards including:
- ASTM-E515-11
- DIN EN 1593
- DSTU EN1593-2015
- GOST 3242-79
High Sensitivity
- Detects leaks as small as 10⁻⁴ m³·Pa/s, offering exceptional precision for critical inspections.
User-Friendly
- Lightweight, compact, and easy to use in both field and workshop applications.
Principle of Operation
The Vacuum Box DELTA-VB300-2 uses the bubble emission method to pinpoint leaks in three steps:
- Preparation: The welded joint is pre-coated with a foaming indicator solution.
- Testing: A vacuum chamber creates an air pressure drop over the test area.
- Detection: Visual identification of through-hole defects is achieved by observing gas bubbles forming in the foaming solution.
This method ensures fast and accurate leak detection, even in challenging corners.
Technical Specifications
| Parameter | Specification |
|---|---|
| Leak Detection Threshold | 10⁻⁴ m³·Pa/s |
| Monitoring Performance | ≥30 m²/hour |
| Geometric Dimensions | 300 x 160 x 160 mm |
| Window Size | ≥210 x 70 mm |
| Weight | ≤1.5 kg |

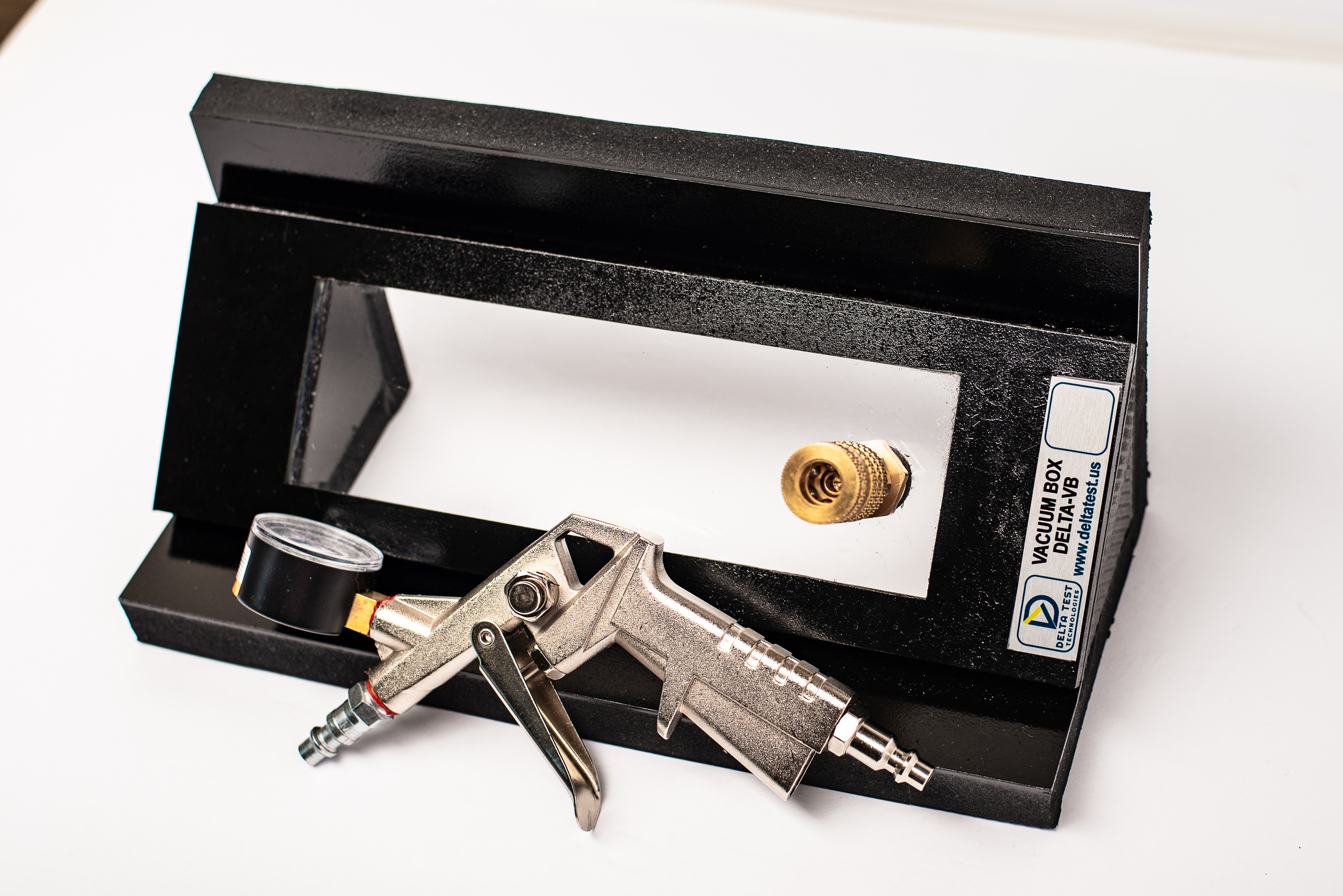

DELTA-VB300-2 Corner Vacuum Box Delivery Set
- DELTA-VB300-2 Corner Vacuum Box: 1 pc

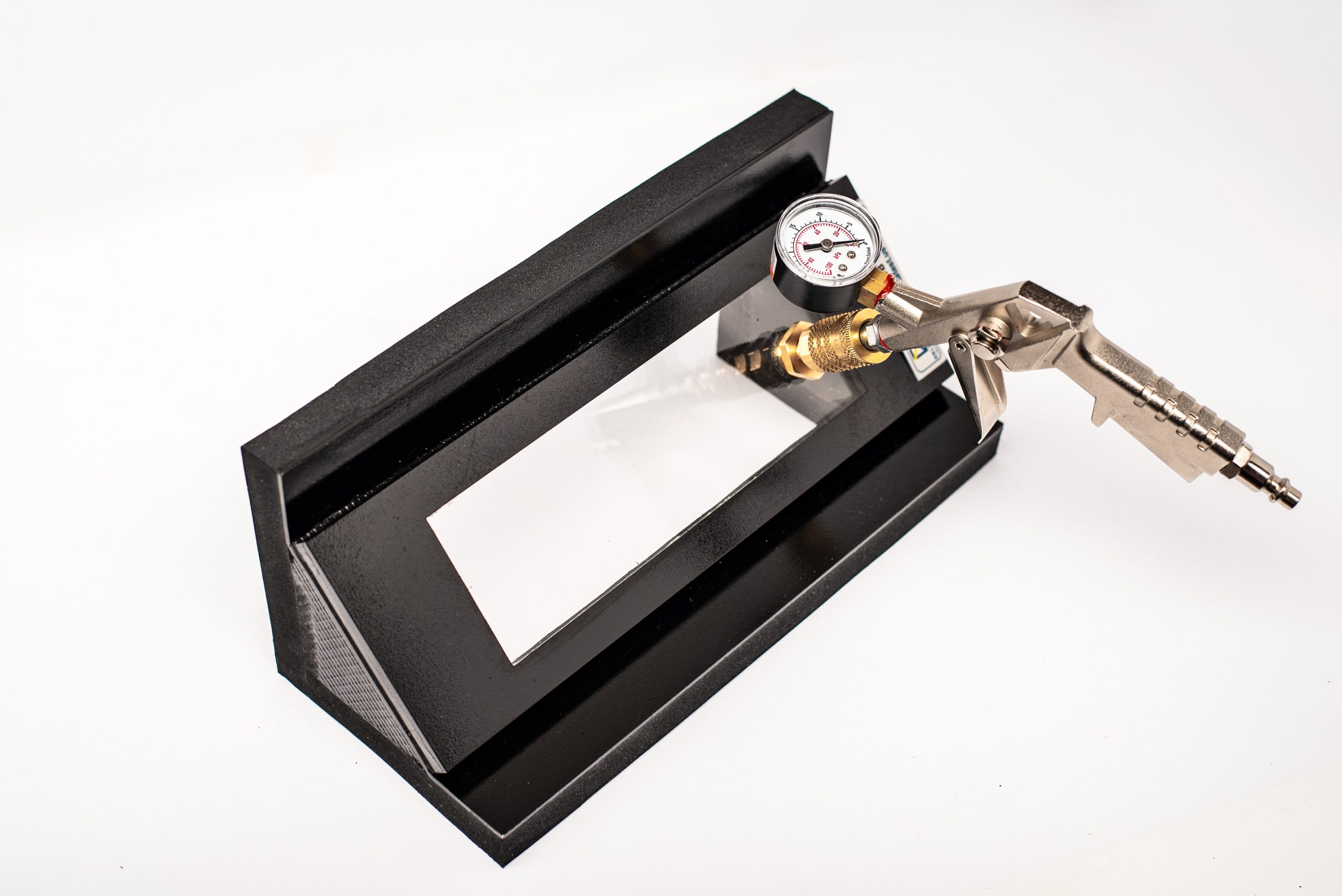

- Pneumatic switch with vacuum gauge: 1 pc
- Vacuum Box User’s Manual: 1 pc
Applications
The DELTA-VB300-2 is ideal for:
- Tank Bottom Inspections: Ensuring weld integrity in storage tanks.
- Protective Shell Testing: Verifying containment shell tightness.
- Vessel and Pipeline Inspections: Detecting leaks in cornered welds of critical components.
Why Choose DELTA-VB300-2 ?
- Tailored for Corners: Specifically designed to inspect areas where traditional vacuum boxes may struggle.
- Precision Detection: High sensitivity ensures even the smallest leaks are identified.
- Portable and Efficient: Lightweight design enables inspection of up to 30 m²/hour.
- Standards-Compliant: Fully adheres to international NDT protocols.
Order the DELTA-VB300-2 Corner Vacuum Box Today
Ensure leak-tightness and structural integrity in your welded joints with the DELTA-VB300-2 Corner Vacuum Box.
Contact us now for more details or to request a quote!
We also offer a variety of technical diagnostic and non-destructive testing equipment to meet your needs.
Applications of the DELTA-VB300-2
The DELTA-VB300-2 corner vacuum box is designed for leak testing welded joints inside corners, such as where a tank bottom meets the sidewall at a 90-degree angle.
It is used for tank bottom inspections, protective shell testing, and vessel and pipeline inspections where three surfaces meet and standard flat boxes cannot seal. Inspectors choose the DELTA-VB300-2 when thorough coverage of challenging corner areas is required.
Like other DELTA-VB instruments, the DELTA-VB300-2 supports non-destructive testing programs in storage, petrochemical, and fabrication industries.
DELTA-VB300-2 key features
- The DELTA-VB300-2 is tailored for inside corners and tight spaces, ensuring coverage where three surfaces meet.
- High sensitivity with a leak detection threshold of 10⁻⁴ m³·Pa/s; the DELTA-VB300-2 offers exceptional precision for critical inspections.
- Monitoring performance of at least 30 m²/hour for efficient corner weld inspection.
- Geometric dimensions of 300 x 160 x 160 mm with a viewing window of at least 210 x 70 mm.
- Weight of no more than 1.5 kg; lightweight, compact, and easy to use in field and workshop applications.
- Meets ASTM E515-11, DIN EN 1593, DSTU EN1593-2015, and GOST 3242-79.
- Delivery set includes the corner vacuum box, a pneumatic switch with vacuum gauge, and a user’s manual; external vacuum pump ordered separately.
