Cable Tension Meter ASZ
Request for Quote
Description

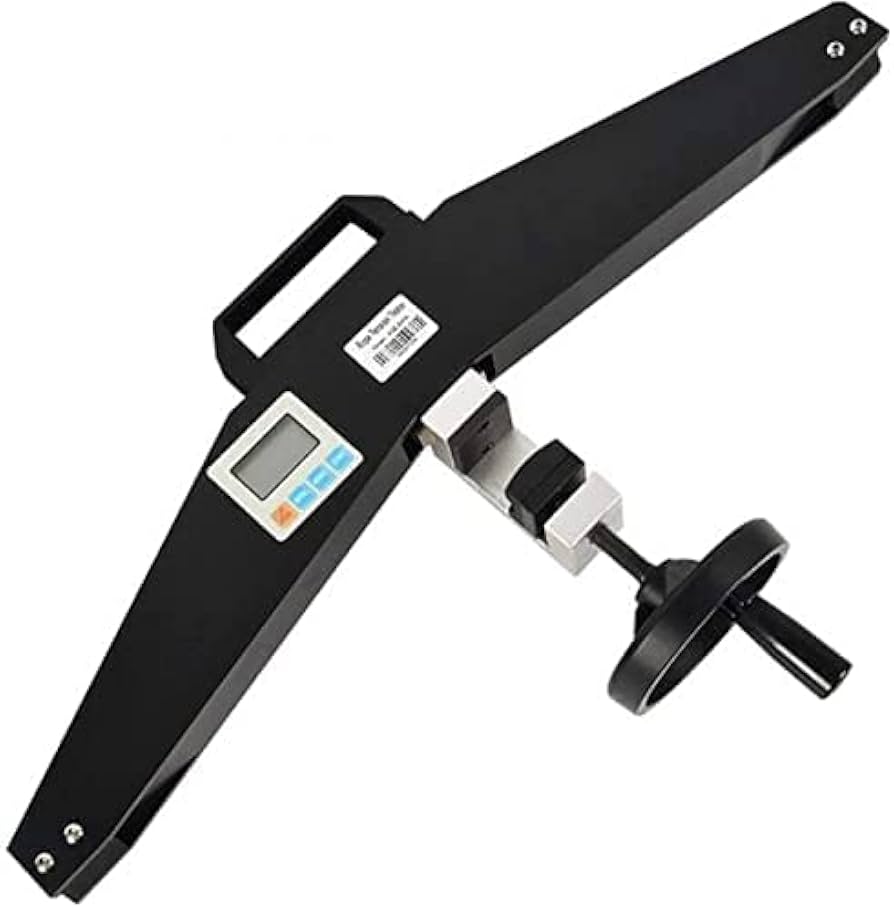

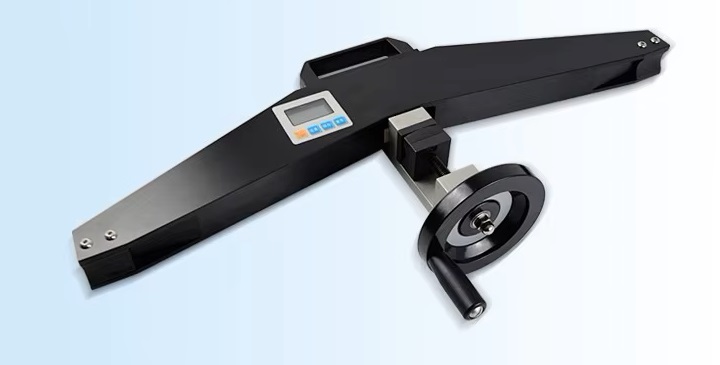

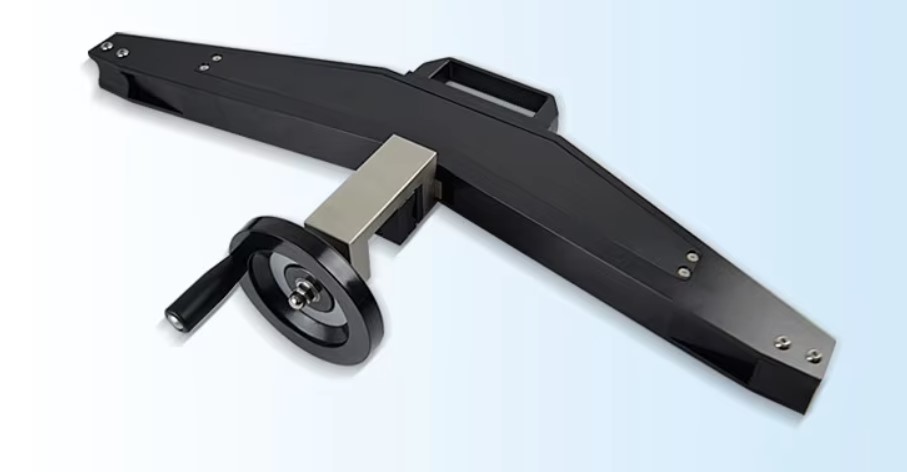

Cable Tension Meter
Models: ASZ-20KN, ASZ-50KN, ASZ-100KN, ASZ-200KN
The Cable Tension Meter is a versatile device designed for measuring the tension of ropes and steel wire ropes across industries such as energy, telecommunication, transportation, and more. It ensures precision and efficiency in applications requiring accurate tension measurement.
Key Features
- Non-Invasive Testing: Measure wire rope tension without breaking power circuits or dismantling systems.
- User-Friendly Design: Lightweight, simple structure, and easy to operate.
- High Accuracy: Stable performance with automatic compensation for reliable measurements.
- Wide Compatibility: Suitable for various flexible and stretchable ropes, including steel and high-strength ropes.
- Precision Levels: Accuracy ranges between 3–6% of full scale, depending on rope shape and characteristics.
- Rope Diameter Range: Compatible with ropes from 6 mm to 40 mm in diameter.
Technical Specifications
| Model | ASZ-20 | ASZ-50 | ASZ-100 | ASZ-200 |
|---|---|---|---|---|
| Max Load (KN) | 20 | 50 | 100 | 200 |
| Divided Load (KN) | 0.01 | 0.01 | 0.1 | 0.1 |
| Rope Diameter | Ø 6–18 mm | Ø 12–26 mm | Ø 20–34 mm | Ø 26–40 mm |
| Output Connector | Rs232 9-hole socket | Rs232 9-hole socket | Rs232 9-hole socket | Rs232 9-hole socket |
| Power | Rechargeable battery charger (100V–240V) | Rechargeable battery charger (100V–240V) | Rechargeable battery charger (100V–240V) | Rechargeable battery charger (100V–240V) |
| Operating Temp | 5℃–35℃ | 5℃–35℃ | 5℃–35℃ | 5℃–35℃ |
| Transport Temp | -10℃–60℃ | -10℃–60℃ | -10℃–60℃ | -10℃–60℃ |
| Relative Humidity | 15%–80% RH | 15%–80% RH | 15%–80% RH | 15%–80% RH |
| Net Weight | 4.7 kg | 5.3 kg | 6.5 kg | 7.0 kg |

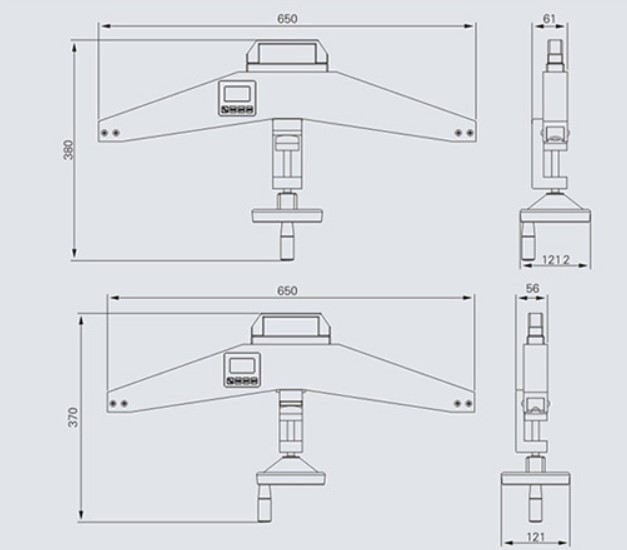

| Dimensions | 650 x 375 x 100 mm | 650 x 375 x 100 mm | 650 x 375 x 100 mm | 650 x 375 x 100 mm |
Applications
The Cable Tension Meter is widely used across industries:
- Energy: Ensuring safe and reliable power line installations.
- Telecommunication: Monitoring tension in communication cables.
- Construction: Measuring tension in structural cables and wires.
- Transportation: Ensuring proper tension in cableways and suspension bridges.
- Research and Education: Supporting academic and laboratory studies.
Why Choose Our Cable Tension Meter?
- Precision Testing: Achieve consistent, high-accuracy results.
- Durable Design: Built for various environmental conditions, ensuring reliable performance.
- Versatility: Compatible with a broad range of rope diameters and applications.
Order the Cable Tension Meter Today
Optimize your operations with the ASZ-20KN, ASZ-50KN, ASZ-100KN, or ASZ-200KN models.
Contact us now for more details or to request a quote!
We also offer a variety of technical diagnostic and non-destructive testing equipment to meet your needs.
