Setting Standards in Non-destructive Concrete Testing with Ultimate Ultrasonic Tomograph A1040 Mira 3D
Elevate Your Concrete Assessment Game with Unprecedented Precision in Thickness Measurement, Rebar Localization, and Flaw Detection.
Download exemplary practical report on ultrasonic testing of a rei…
Elevate Your Concrete Assessment Game with Unprecedented Precision in Thickness Measurement, Rebar Localization, and Flaw Detection.
Download exemplary practical report on ultrasonic testing of a reinforced concrete beam

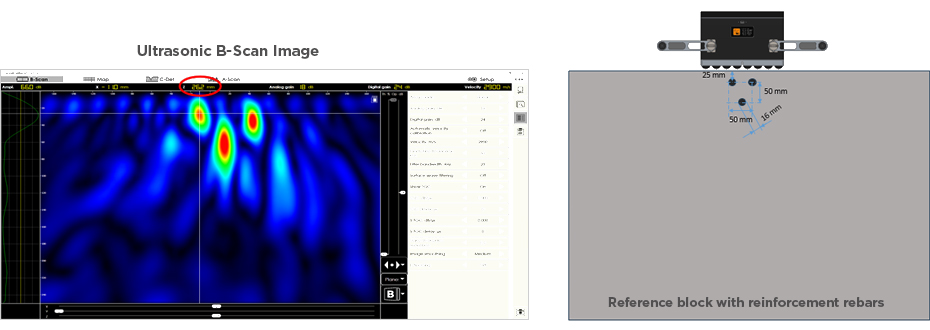

Localization of reinforcement rebars and other structural elements
Detection of grouting defects in tendon ducts and grouting couplers
Achieve incomparable penetration depth of up to 2m/6.5ft, revealing hidden details within concrete structures.
With a maximum square coverage of 10x10m²/33x33sq.ft, you can assess larger areas efficiently and comprehensively.
Specifications
| Instrument type | Multi-channel ultrasonic pulse echo tomograph with built-in matrix transducer array |
| Number of channels | 32 (extendable to 64, 96 etc.) |
| Number of independent elements in the matrix transducer aperture | 32 (extendable to 64, 96 etc.) |
| Type of the ultrasonic transducers | Active dry point contact (A-DPC) transducers with ceramic wear proof tips and integrated pulser-receiver electronics |
| Bandwidth | from 10 to 100 kHz |
| Material sound velocity range | from 1.000 to 4.000 m/s (from 40 to 157 inches / s) |
| Maximum penetration depth in reinforced concrete | up to 3.000 mm (118 inch) |
| Power supply | Exchangeable Li-Ion battery 18650 |
| Battery operation time | up to 10 hours |
| Maximum dimensions of one unit without handles: | 200x125x100 mm (7,9 x 4,9 x 3,9 inch) |
| Maximum weight of the electronic unit with the batteries, handles and tablet PC mounted | 3.5 kg |
| air temperature range | from -20 to + 50°С (from 25 to 122°F) |
| relative air humidity at +35°С / 95°F, max. | 95 % |
| Average service life, min. | 5 years |
