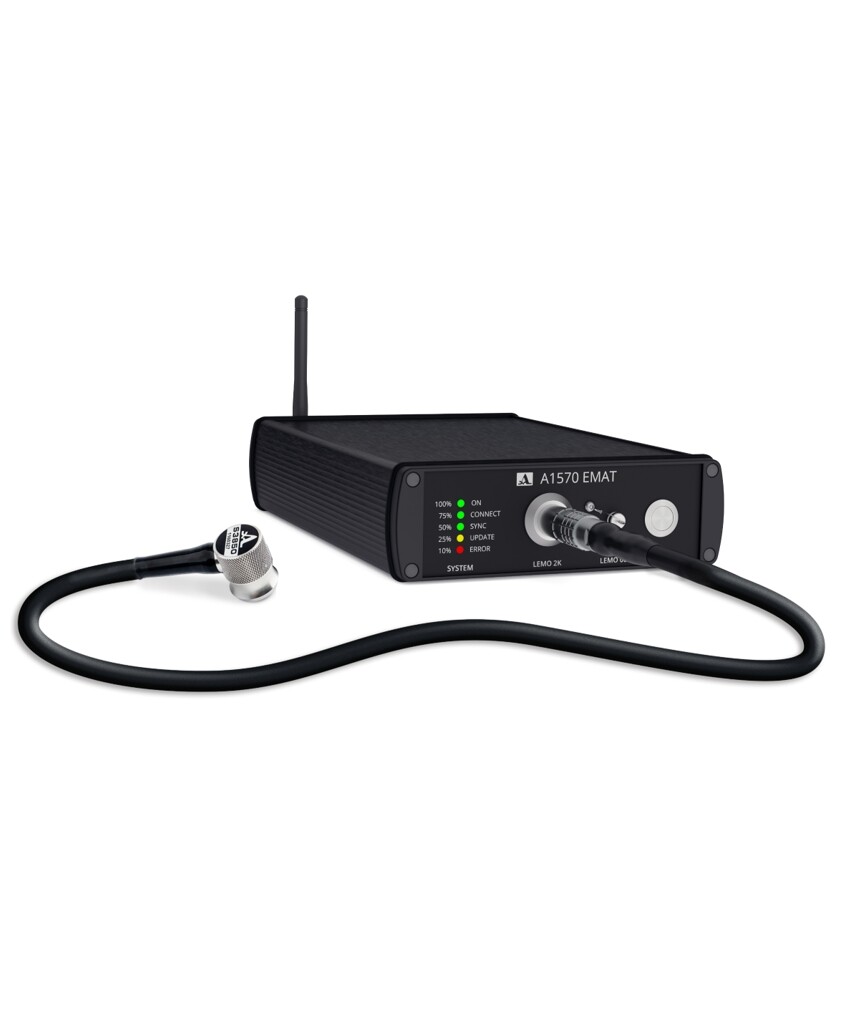

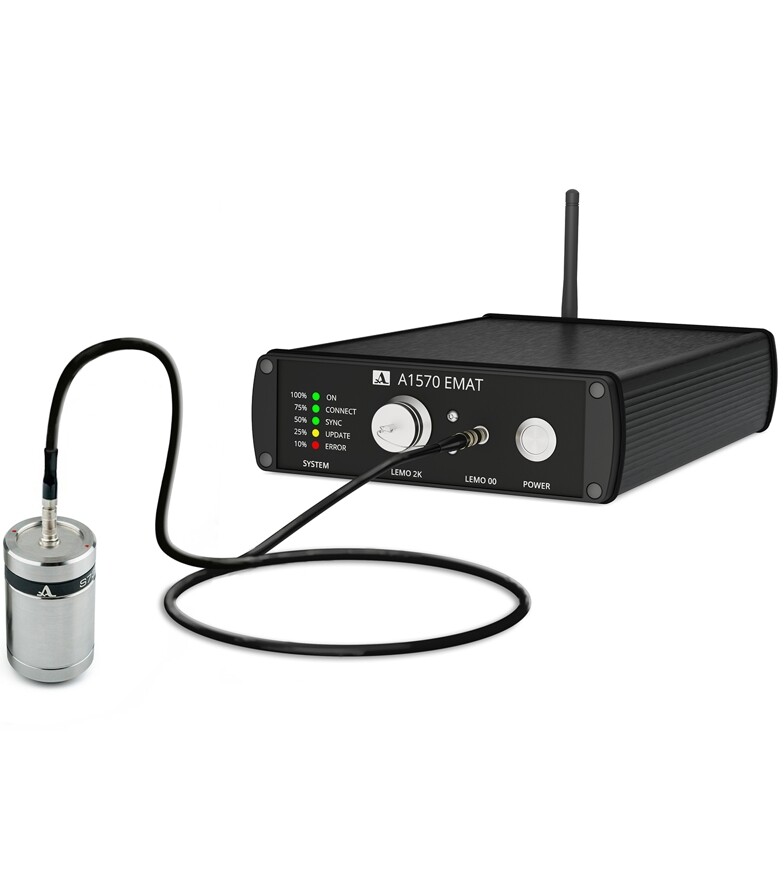

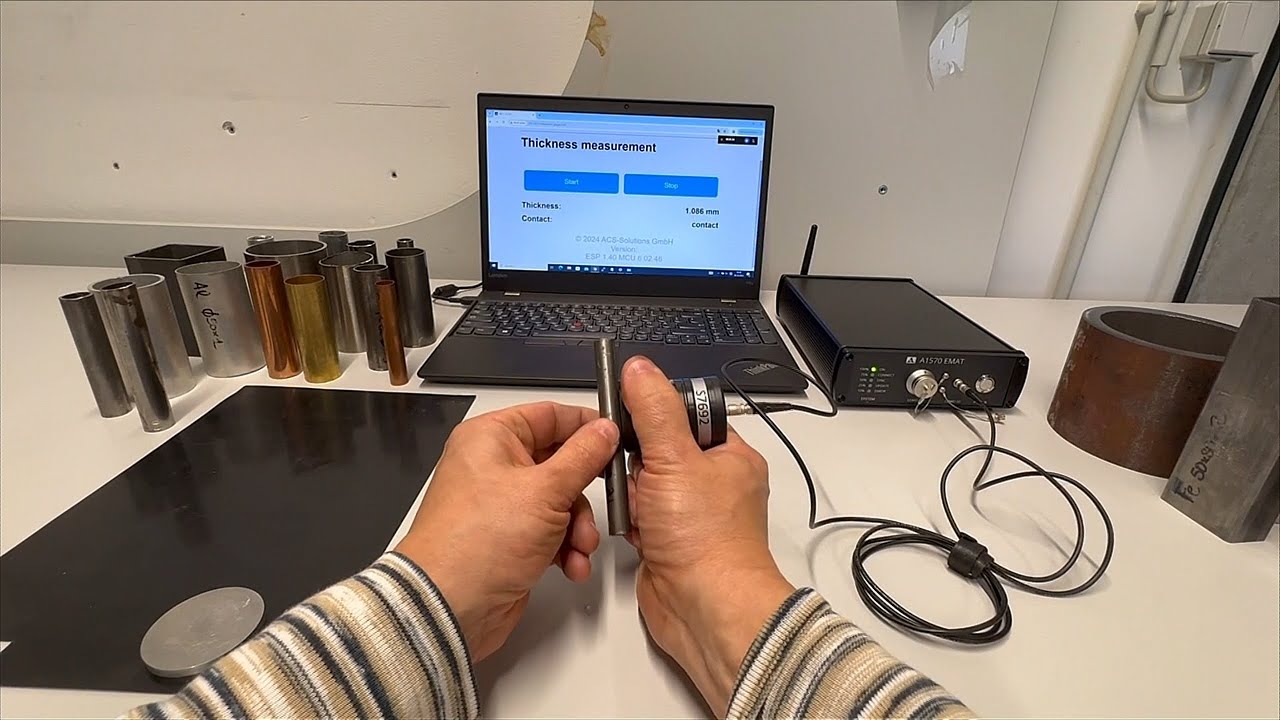

A1570 EMAT – DAQ unit for EMAT thickness measurements
OEM Ultrasonic Pulser-Receiver frontend unit for couplant-free thickness measurements by means of electromagnetic acoustic transducers
A1570 EMAT is the high-end EMAT data acquisition frontend unit d…
Description
OEM Ultrasonic Pulser-Receiver frontend unit for couplant-free thickness measurements by means of electromagnetic acoustic transducers.
A1570 EMAT is the high-end EMAT data acquisition frontend unit designed for integration in automated inspection setups & scanning systems (crawlers) for couplant-free thickness measurements on metallic objects. The pulser and receiver of A1570 EMAT can drive the regular EMAT transducers with permanent magnets as well as the novel EMAT probes with pulse magnetization. The instrument possesses an integrated battery and wireless data interface for stand-alone operation.
With the well-documented SDK the user is enabled to develop his own software applications for customized inspection tasks.
A1570 EMAT is dedicated to conducting ultrasonic thickness measurements by means of electromagnetic-acoustic transducers. The instrument is suitable for variety of applications, such as:
- Automated and mechanized corrosion testing on pipelines and storage tanks
- Thickness measurements on boiler tubes & heat exchangers
- Ultrasonic measurements on high-temperature objects
- In-Situ ultrasonic stress measurements
Specification
| TRANSMITTER | |
| Output voltage, Volt | Bipolar burst ± 200 V, ± 400 V, ± 600 V |
| Excitation sequence, periods | 0.5 to 9 |
| Pulse repetition rate, Hz | up to 60 with the averaging factor 32 |
| RECEIVER | |
| Data acquisition length, Samples | up to 8 KSamples |
| Sampling rate, MHz | 25 MHz, 50 MHz, 100 MHz |
| Receiver bandwidth, MHz | 1 to 15 MHz |
| Dynamic range of the amplifier including Time Corrected Gain (TCG), dB | 40 dB |
| Averaging factor | up to 32 |
| DATA INTERFACES | |
| Ethernet | up to 100 MBit |
| WiFi 802.11b/g/n / Bitrate:802.11n | up to 150Mbps |
| External trigger output | TTL + RS485 pulse signal |
| TRANSDUCER INTERFACES | |
| For EMAT with pulse magnetization | Lemo 2K (EGG.2K.810.CLL1/EGG.2K.810.CLL1) |
| For EMAT with permanent magnet | Lemo 00 (ERN.00.250.CTL) |
| DIMENSIONS & WEIGHT | |
| Dimensions of the electronic block | 320 х 165 х 55 mm |
| Weight of the electronic block | 1650 g |
Delivery Kit
- А1570 – EMA thickness gauge electronic unit — 1
- EMA transducer S7694 — 1
- Single Lemo00 cable 1.2 meter (other lengths available on request) — 1
- WiFi Antenne — 1
- Ethernet cable 1.5 meter — 1
- Net adaptor with cable 220V-15V — 1
- Introductory application software “ACS Mathilda-EMAT Windows GUI App” (available at www.acs-international.com) — 1
- Hard case — 1
Documentation
Applications of the A1570 EMAT
The A1570 EMAT is a high-end EMAT data acquisition frontend unit designed for integration in automated inspection setups and scanning systems (crawlers) for couplant-free thickness measurements on metallic objects.
The A1570 EMAT suits a variety of applications, such as automated and mechanized corrosion testing on pipelines and storage tanks, thickness measurements on boiler tubes and heat exchangers, ultrasonic measurements on high-temperature objects, and in-situ ultrasonic stress measurements.
With its integrated battery and wireless data interface, the A1570 EMAT also operates as a stand-alone unit, and the well-documented SDK lets users develop their own software for customized inspection tasks.
A1570 EMAT key features
- OEM ultrasonic pulser-receiver frontend for couplant-free thickness measurements with electromagnetic-acoustic transducers, built for automated inspection setups and crawlers.
- The A1570 EMAT drives regular EMAT transducers with permanent magnets as well as novel EMAT probes with pulse magnetization, through Lemo 00 and Lemo 2K interfaces.
- Transmitter with bipolar burst of ±200 V, ±400 V and ±600 V, excitation sequences of 0.5 to 9 periods, and a pulse repetition rate up to 60 Hz with an averaging factor of 32.
- Receiver with data acquisition up to 8 KSamples, sampling rates of 25, 50 and 100 MHz, a bandwidth of 1 to 15 MHz, and a 40 dB amplifier dynamic range including Time Corrected Gain (TCG).
- Data interfaces: Ethernet up to 100 MBit, WiFi 802.11b/g/n, and an external trigger output (TTL + RS485 pulse signal).
- The A1570 EMAT has an integrated battery and wireless interface for stand-alone operation, with a documented SDK and the ACS Mathilda-EMAT Windows GUI application for custom software development.
- Electronic block of 320 x 165 x 55 mm and 1,650 g, supplied with the EMA transducer S7694, cables, a WiFi antenna and a hard case.
