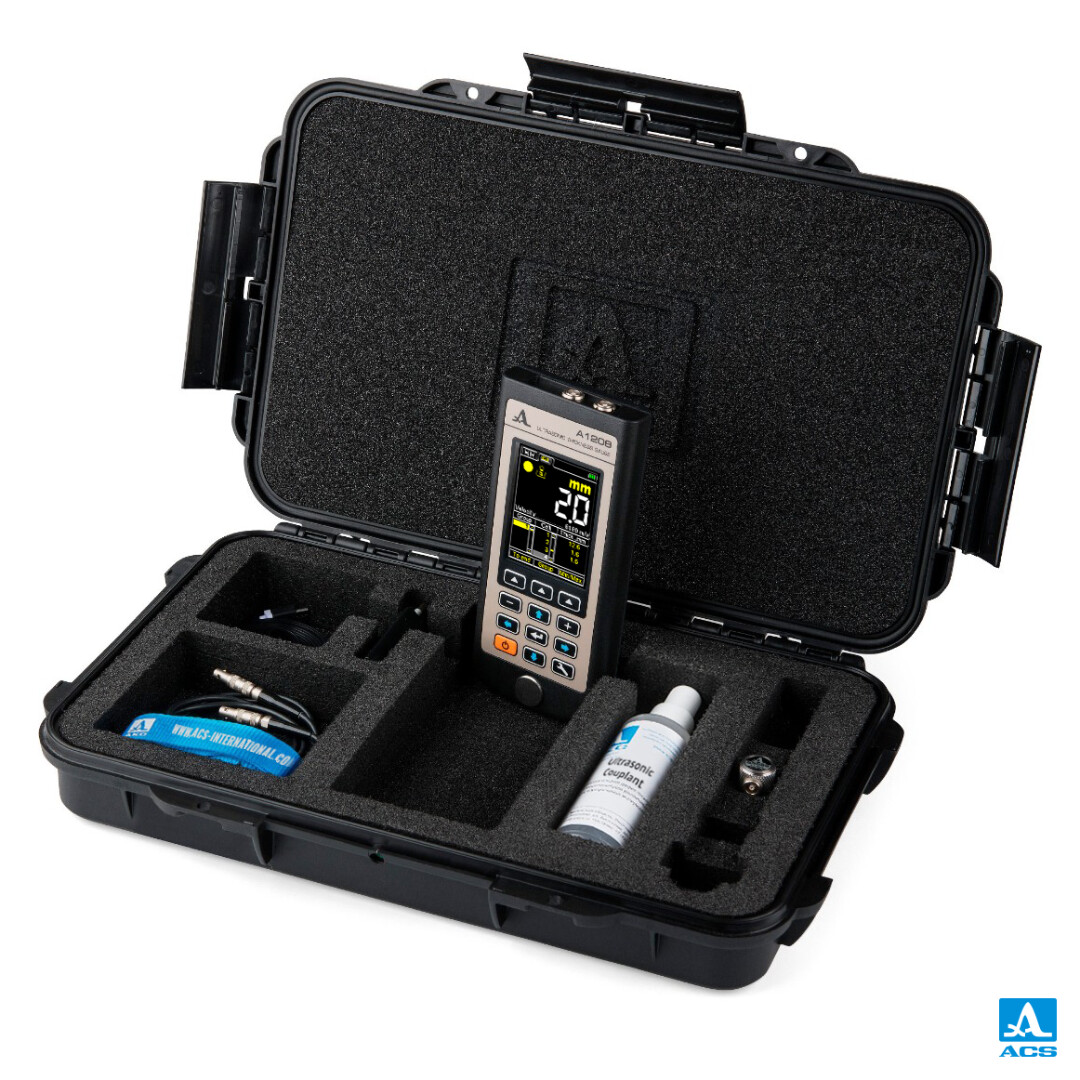

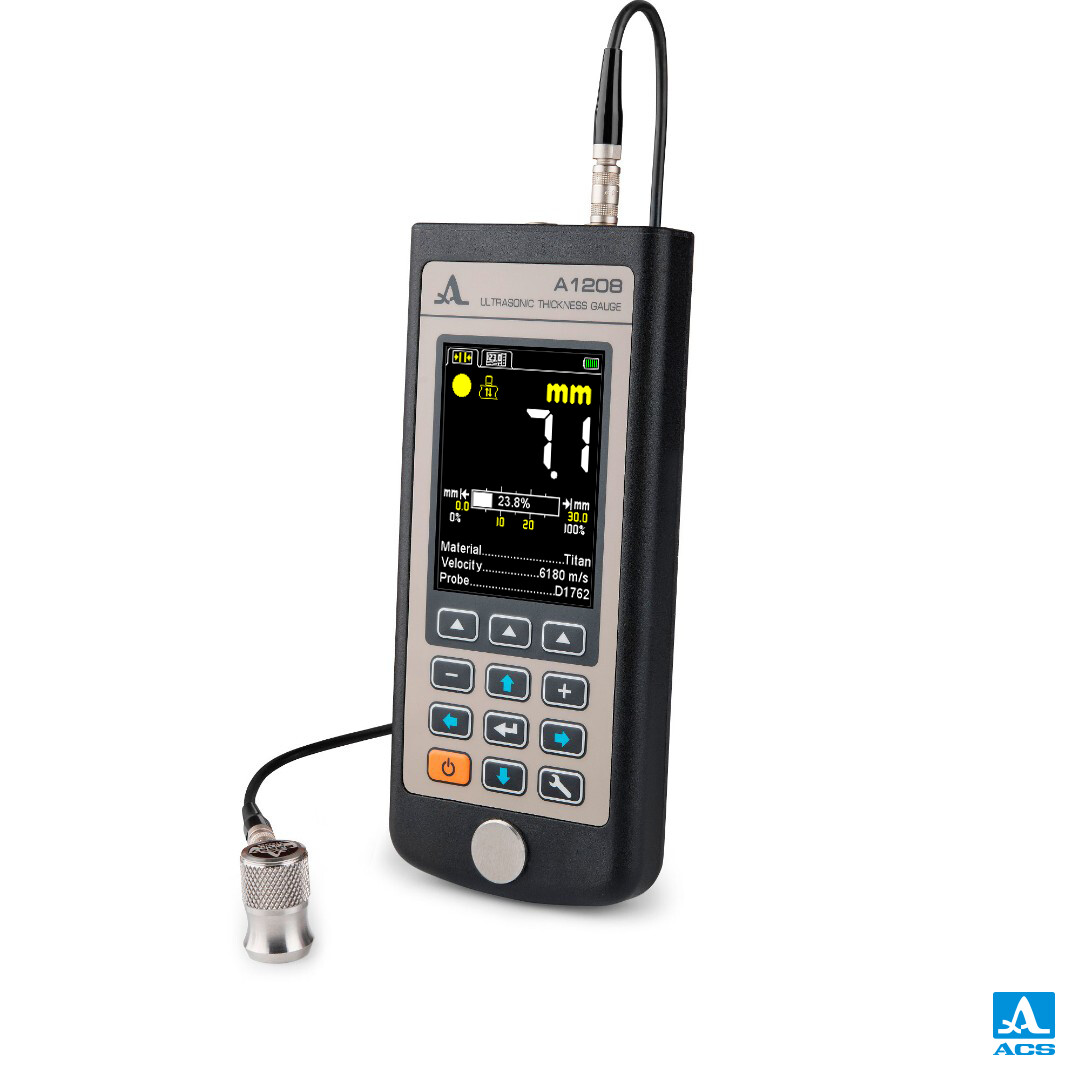

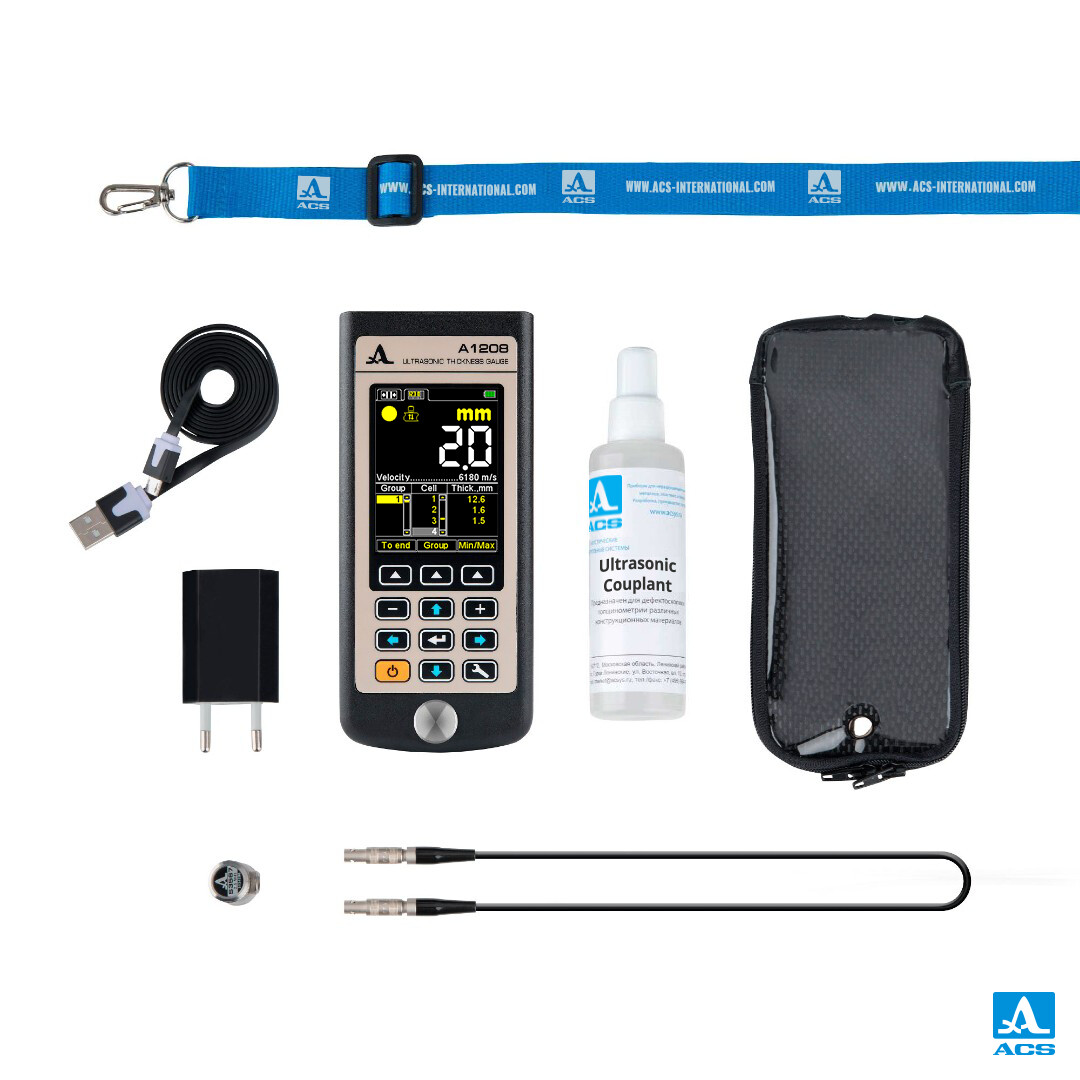

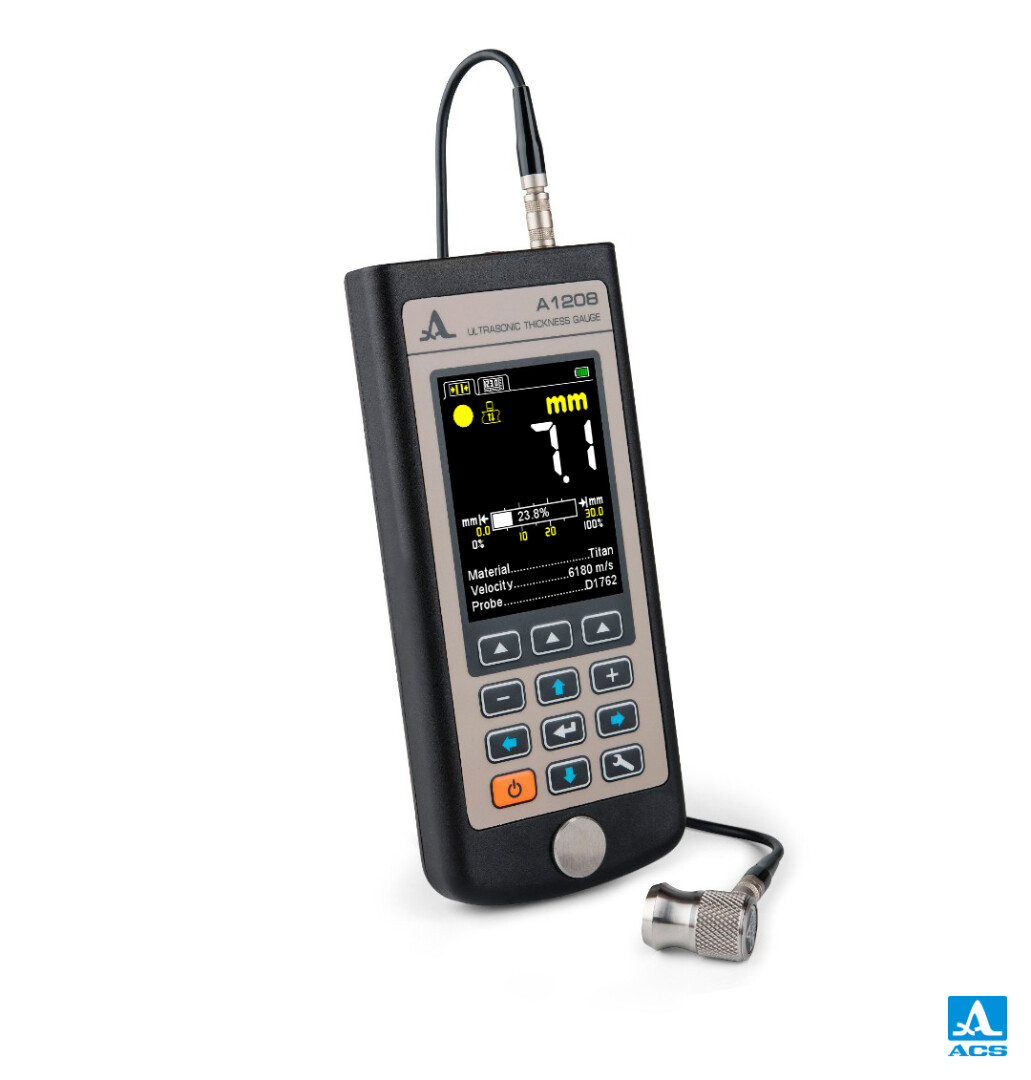

A1208 – frost-proof ultrasonic thickness gauge
Frost-proof ultrasonic thickness gauge for difficult weather conditions (from -30˚ to +50 ˚С). The range of thickness measurement on steel is from 0,7 to 300 mm. Work with both single-crystal and doub…
Frost-proof ultrasonic thickness gauge for difficult weather conditions (from -30˚ to +50 ˚С). The range of thickness measurement on steel is from 0,7 to 300 mm. Work with both single-crystal and double-crystal transducers.
The single-crystal wear-resistant transducer S3567 2.5A0D10CL is used to measure thickness of metals, cast iron and other materials with high ultrasound attenuation.
Frost-proof ultrasonic thickness gauge for difficult weather conditions (from -30˚ to +50 ˚С). The range of thickness measurement on steel is from 0,7 to 300 mm. Work with both single-crystal and double-crystal transducers.
The single-crystal wear-resistant transducer S3567 2.5A0D10CL is used to measure thickness of metals, cast iron and other materials with high ultrasound attenuation.
The double-crystal transducer D2763 10.0A0D6CL provides detection of pitting corrosion and measuring thickness thin-walled pipes of small diameter.

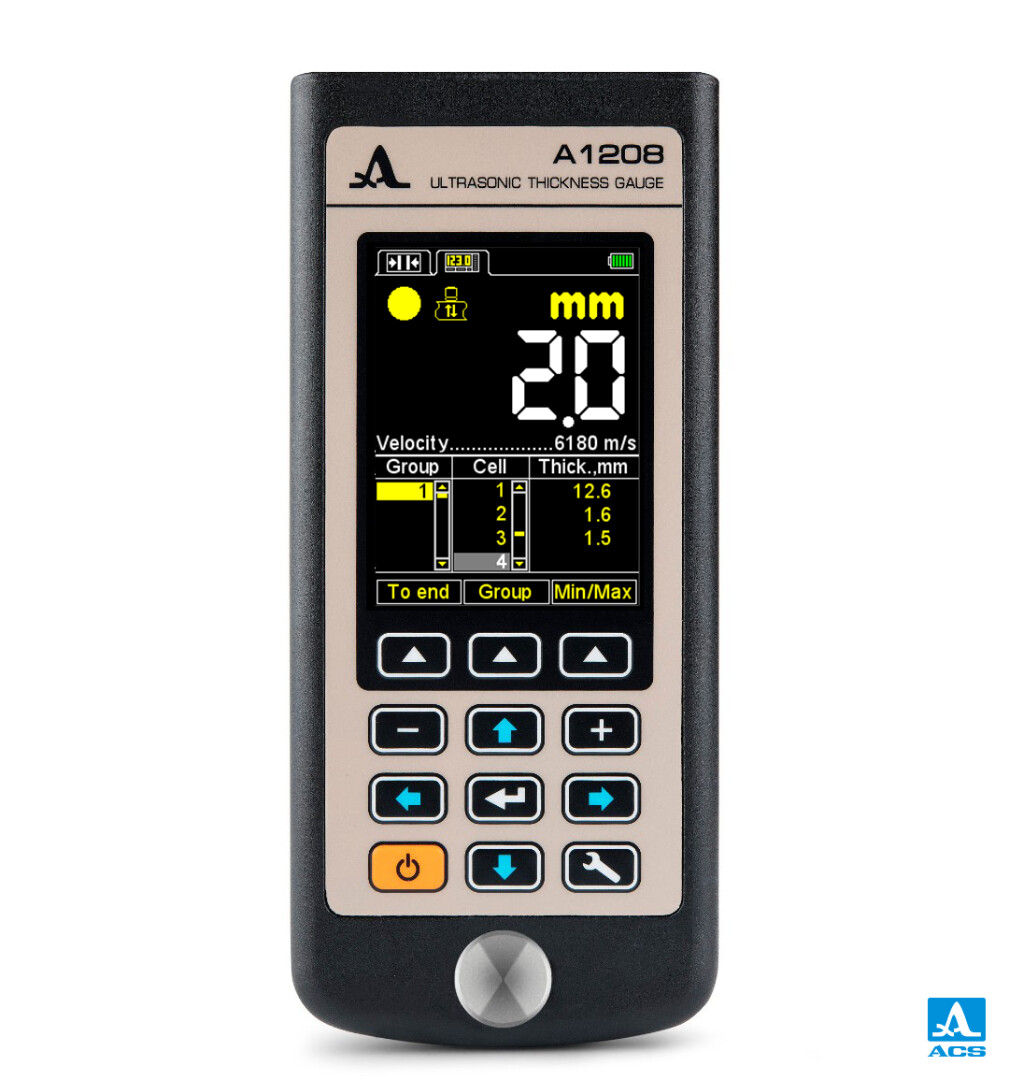

It is easy to master the device thanks to its high contrast display, friendly interface and high functionality.
Specifications
| Thickness measurement range(for steel) with transducers: S3567 2.5A0D10CL | from 0,8 to 300,0 mm |
| D2763 10.0A0D6CL | from 0,7 to 30,0 mm |
| Discreteness of thickness measuring for thickness range: from 0,7 to 99,99 mm | 0,01; 0,1 mm |
| from 100,0 to 300,0 mm | 0,1 mm |
| Basic measurement accuracy for thickness X, mm not more: for thickness from 0,7 to 3,0 mm | ±(0,01Х+0,1) mm |
| for thickness from 3,01 to 99,99 mm | ±(0,01Х+0,05) mm |
| for thickness from 100,0 to 300,0 mm | ±(0,01Х+0,1) mm |
| Minimum curvature radius | 10 mm |
| Ultrasound velocity range | from 500 to 19 999 m/s |
| Display type | TFT |
| Power | built-in lithium accumulator |
| Operation time without re-charging | 9h |
| Opeating temperature | from -30 to +50 °С |
| Size of the electronic unit | 161 х 70 х 24 mm |
| Weight of the electronic unit | 210 g |
